OPC .Net client server toolkits for OPC DA, HDA, AE, XML-DA      Advanced
         OPC .Net client server toolkits for OPC DA, HDA, AE, XML-DA
Online Tools
- OPC Error Lookup
* privacy and security Guaranteed
OPC XML Webservices - XML DA Developer Kits Login

XML DA Developer Kits

Sub Category Summary
XML DA Client Components

The XML-DA client development componentes simplify the development with helper classes and tools. Through an integrated wrapper the XML-DA client can access OPC DA servers.
XML DA Server Toolkits

The XML-DA server toolkits are designed for simple use and provide Visual Studio integrated help and and wizards that take guesswork out of the development process. Only a customization assembly needs to be developed and this assembly can be used with the XML-DA and OPC-DA generic server.

Please select a subcategory above

Category Description

XML-DA Development Tools

Client development components provide helper classes and tools to simplify the client development and provide access to OPC DA servers.

XML-DA Client Application using the XML-DA Client SDK XML-DA Client Application using the XMLDA.NET Wrapper

 OPC XML DA Client Wrapper component for OPC XML clients to access OPC DA servers and OPC XML servers

The XmlDaClientSDK assembly is referenced in place of the web service reference. The web service proxy stub methods are part of the XmlDAClientSDK assembly.

XmlDAClientSDK provides additional helper methods to simplify the server access and offers detailed context sensitive help with most information of the XML-DA specification.

The XML-DA client references the XMLDA.NET assembly in place of the web service reference.
Depending on the URL:
- the XML-DA server is accessed
- the call is wrapped to the OPC DA interface and the OPC DA server is accessed through DCOM.

Supports fast access to multiple OPC DA servers and standard web service access to multiple XML-DA servers.
All XmlDAClientSDK features are included.

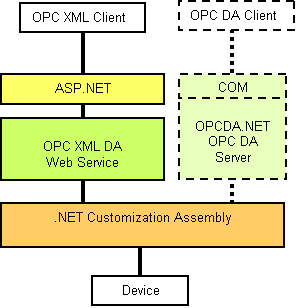

Using the XML-DA Server Toolkit XML-DA servers can be built by only developing a simple .Net customization assembly.



bullet Implemented as an ASP.NET Web Service
bullet Customization in a separate .NET Assembly that can be programmed with VB.Net, C# or any .NET supported compiler.
The OPC XML server uses the same customization component interface as the OPCDA.NET server, making it possible to use the server customization component in XML and COM based servers.
bullet The project documentation is integrated into the Visual Studio help system and offers context sensitive help.
bullet Thanks to the free threaded server implementation the customization assembly can easily be debugged without OPC client interaction. For further testing the provided diagnostic client allows the user to interactively test each OPC server function.
