OPC HDA .NET Server Toolkit  Buy or Evaluate

OPC Historian .NET Server Toolkit

OPC Foundation Self-Tested for Compliance logo indicates that this product has been tested by the manufacturer to be compliant with the following OPC Specifications: Historical Data Access 1.00, Historical Data Access 1.10, Historical Data Access 1.20. Additional information about compliance testing, logo program and a summary of test results for HDANSrv OPC HDA .NET Server Toolkit Version 1.1.1 can be found at www.opcfoundation.org.


The HDANSrv OPC Historian Server Toolkit enables users to implement OPC HDA compliant servers with C# or VB.NET.
The COM client interface and the wrapping to .NET data types is handled in the generic toolkit server component.
To make the toolkit easy to use and understand the server code is structured in three layers:

  • Generic OPC HDA COM server
    Handles the client COM interface and the .NET wrapping. The data is converted to/from .NET data types.
    There are no application specific features. The provided implementation doesn't require any application adaptations.

  • Base Customization .NET plug-in assembly
    Does the basic OPC HDA compliant request handling. The provided C# and VB.NET implementation handles most application requirements. Application specific adaptations may be necessary for optimized server performance.

  • Database Access .NET plug-in assembly.
    This layer handles the application specific database access and data processing supported by the server.
    The provided sample implementation handles a text file database.

The provided sample servers are tested with the OPC Foundation Compliance Test Tool for full OPC HDA 1.0 / 1.1 / 1.2 compliance.

Complete source code is available and the code is well structured and extensively documented. The custom server development can be as simple as adapting one database access method.
To achieve top performance it may be necessary to adapt the provided Base Customization .NET plug-in assembly implementation.

   OPC HDA .Net server toolkit

Standard Edition Server Toolkit Features

bullet OPC HDA V1.0 / 1.1 / 1.2 compliant
bullet Generic server as a local/remote COM server with a high performance .NET wrapper. Works in 32-bit and 64-bit mode with the same customization plug-in assembly.
The server can be registered to run as a process or a Windows Service.
bullet Application specific handling is in.NET Assemblies that can be coded with VB.Net, C# or any .NET compiler.
bullet C# amd VB.NET source code of the base customization plug-in is provided with the Site license.
bullet The documentation is supplied as a Windows help CHM file and as a Help2 component that integrates into the Visual Studio help system and offers context sensitive help.
bullet Test client that allows the interactive execution of all OPC HDA defined functions.
bullet Simple deployment.
bullet The Standard Edition supports of all mandatory HDA features and the optional asynchronous read functions.
bullet Developer license with one time fee, no run-time licenses required.
bullet The license includes an Updates/Support subscription for 90 days.





UA Converter Server



Access from UA Clients

The UAtoCOM converter server enables UA client applications to access the HDANSrv based OPC HDA servers.
With access either direct or thru the converter server OPC HDA and OPC UA clients can simultanously access the same HDA server.




Professional Edition Server Toolkit Features

bullet All features of the Standard Edition
bullet Additionally supports the optional OPC HDA Update, Playback and Annotations features.
bullet Complete source code of the generic server and the plug-in customization assemblies for the sample text file database server implementation. The generic server is coded in C++ and the sample server are provided in C# and VB .Net.



System Requirements
bullet Windows 7, 8.x, 10 or Windows Server 2008, 2012, 2016    32 or 64bit
.NET Framework 4.x
bullet Visual Studio 2010,2012,2013,2015 or 2017, C# or Visual Basic



Server Development

The generic server converts all client call parameters to .Net types and calls the appropriate method in the customization plug-in. All application specific server handling can be implemented in C# or VB.Net, using only .Net data types.
The provided sample servers are used as the starting point for custom server development projects. Depending on the application requirements the server development can be as simple as adapting the database read methods.


OPC Standard Compliance
The provided sample server implementation is tested with the OPC Foundation Compliance Test Tool for compliance with the OPC HDA V1.0/1.1/1.2 specifications.

Visual Studio Integrated Help
The server documentation is provided as a Windows help CHM file and as a Help2 component that plugs into Visual Studio help and supports Context sensitive help that displays the needed information without long searches, just click F1 on the name.

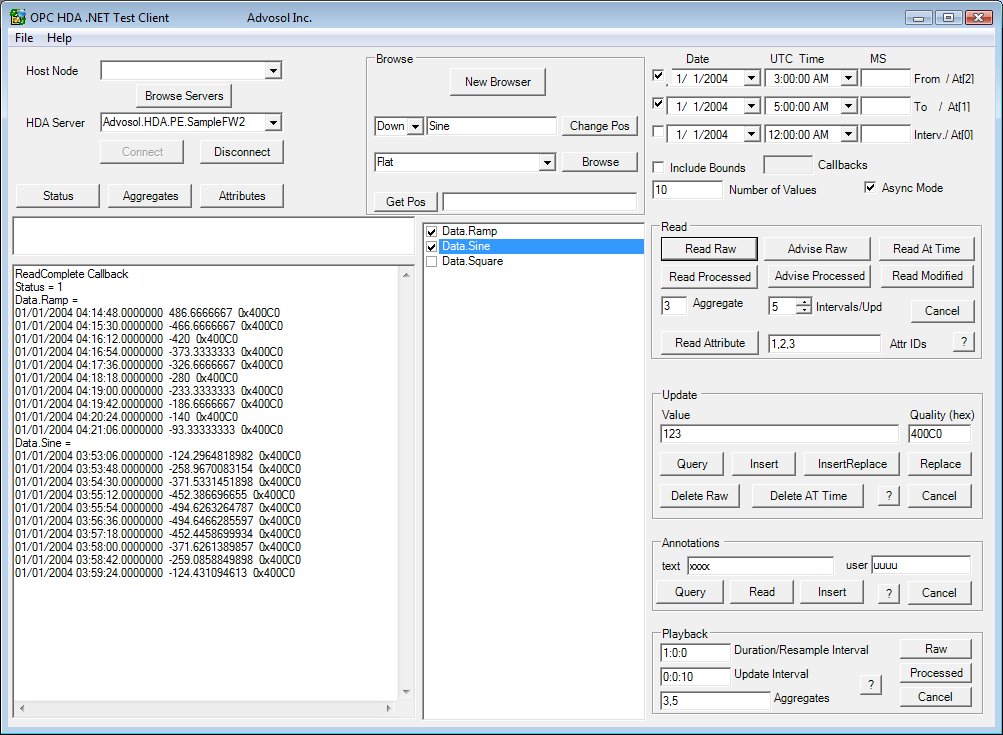

Test Client
All OPC HDA defined functions can be called interactively.
This test client is a .Net application, built with the OPCHDA.NET component, which is available as a separate product.

OPC HDA Test Client
